System specifications type ST and STz:

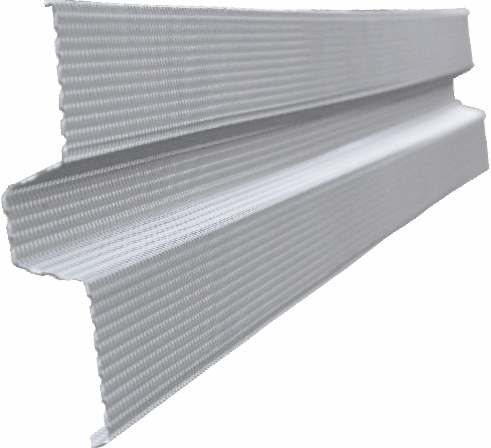

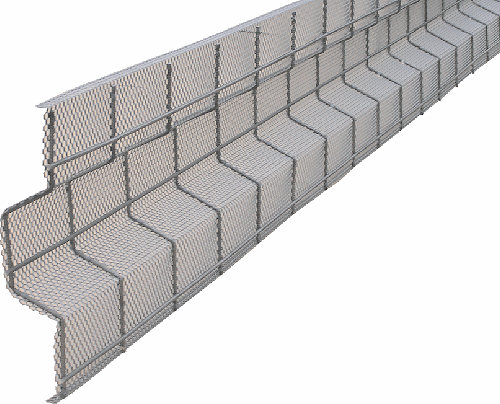

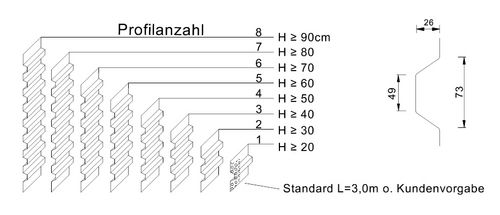

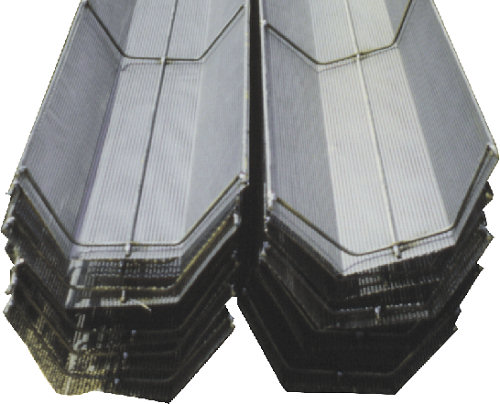

MSL makes the trapezoidal profiling to client specification of type STz or with the standard dimensions 49/73/26 of MSLtype ST. From an installation width of 12,5 cm the perforated sheet metal and steel mesh can be made with standard profiling. The number of profiles depends on installation width - see drawing. Element length is 3.0 m.

MSL trapezoidal profiling meets the shearing force transmission requirements in joints of DIN 1045-1 (linked).


                           ST 0,50                                               ST 1,50

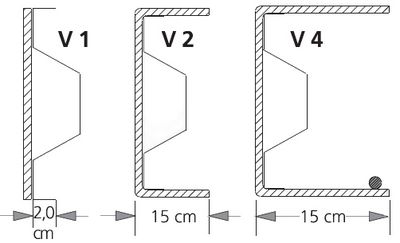

For the ST and STz types 3 reinforcement variants V1, V2 and V4 are available ex works.

Tailored profiling to client specifications

This is available from an installation width of 25 cm. (Type Stz)

Order Example:
ST 0,50V4 = trapezoidally profiled perforated sheet metal with the standard 0,5 mm thick profiling and steel reinforcements type 4.
